Product Description

Hemodialysis Tubing Set is a sterile, single-use medical device designed to create a safe extracorporeal blood circuit between the patient and the dialyzer during hemodialysis treatment.

It consists of arterial and venous blood lines that transport blood from the patient to the dialyzer and back to the patient. The tubing is made from medical-grade materials that are latex-free and DEHP-free, ensuring high biocompatibility and minimizing adverse health effects.

The product is compatible with most dialysis machines and meets international quality standards. It is designed with smooth inner surfaces to reduce blood damage and prevent air bubble formation, ensuring safe and efficient dialysis procedures.

Features

  • Medical plastic material latex-free and DEHP-free to minimize adverse effects on health.
  • The size can be used with all the dialysis machine brands in the world.
  • Products reach European quality standards (CE Marked).
  • Soft material, good elasticity, non pyrogenic, no heat generation.
  • Sterilization by Ethylene Oxide (E.O.)
  • Arterial tube with a pillow available on request.

Package Method: 30 set / carton

Get the Best Quote

To order, call: (+855) 093 265 939 (24/7 support)

1.Material

The major components of this product are made from medical-grade PVC, PP, PC, ABS, PE and other medical-grade macromolecule materials. And it is free of latex.

2. Product configuration and Feature

The tubing set consists of a red Arterial line and a blue Venous line, the tubing is soft, transparent, smooth, non-kink and non-leak, which ensure the good liquidity of the tubing. The filter in the venous chamber can prevent the blood clot going into patient’s vein.

3. Technical Performance

The products is fully sterilized by Ethylene Oxide gas, sterility and non-pyrogenicity.

4. Indication for use

This product is intended to connect with the dialyzer to the patient in dialysis treatment. It can be used with all the dialysis machine.

5. Usage method

  1. Take out the tubing from the pouch, the Arterial and Venous connectors should be connected correctly with the dialyzer’s arterial and venous ports respectively.
  2. Priming using physiological saline, removing all of the air from the tubing and the dialyzer.
  3. Before the 5.2 step finished, use heparin saline prime the tubing and the dialyzer, which ensure the tubing is full of the heparin saline, then stop pumping, clamp all of the tubings.
  4. Recheck all the connectors, make sure all of the connectors are tight.
  5. Start treatment referring to the dialyzer instruction for use.

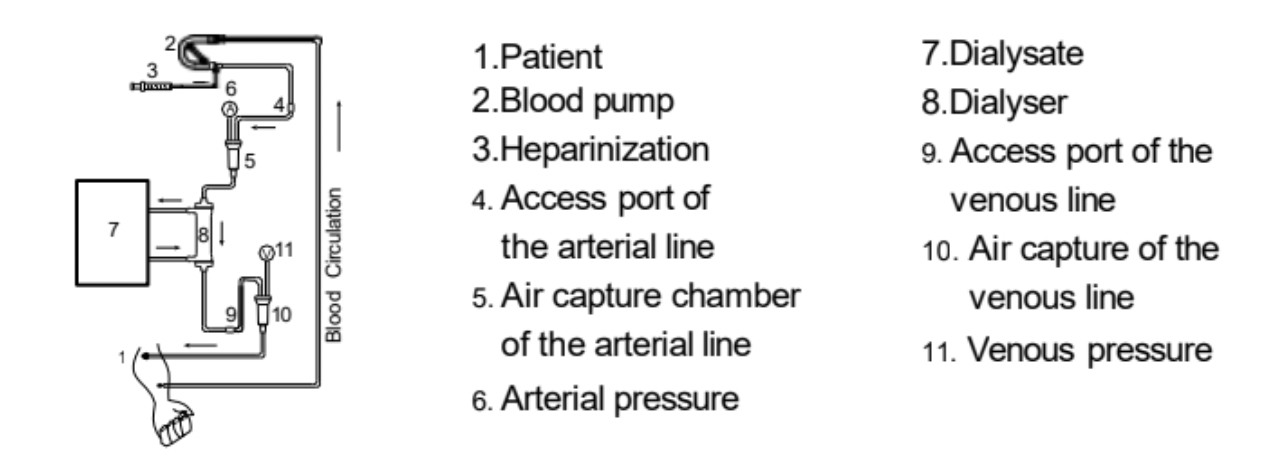

  6. The typical bloodline circuit diagram

6. Transportation and storage

Please avoid crash or exposure to rain, snow or direct sunlight during transportation. Store it in 0°C~40°C, well-ventilated indoor place with relative humidity no more than 80%, without corrosive gas. Do not store it in warehouse with chemicals and moist articles.

7. Precautions in use

  1. This product should be used under medical supervision. Use aseptic technique throughout connection, priming and treatment. The validity period is three years after the sterilization day. Please checked the expiration date priorto use, to prevent contamination or infection, do not use any expired product.
  2. Do not use the product if the pouch is damaged.
  3. Open the pouch and pick out the tubing set carefully.
  4. The safety of the connection to dialyzers should be guaranteed. Do not use this product if the dialyzer connector can not fit for the dialyzer. Check from time to time to ensure that all of connectors are tight to prevent blood leakage or the air bubbles and avoid air embolism caused by entry of air into the patient. Make sure the tubing set is properly installed to the dialysis machine to prevent kinking during treatment.
  5. If the tubing set can not be properly connected, or there is any fluid leakage or presence of air bubbles, treatment or readjustment should be performed by physician. In case no improvement is made, replace with another new tubing set. Any abnormal condition should be properly treated under the direction of physician.
  6. This product is for single use only and reuse is strictly prohibited. Reprocessing of this product may lead to adverse patient reactions and/or device failure. It should be discarded according to laws and regulations relevant to disposal of infectious medical waste so as to prevent infection.
  7. The transducer protector of this product is welded by high frequency bonding technology, if it is wetted by saline or blood during dialysis, it should be clamped the tubing which connects with the transducer protector, and then replace with another new transducer protector. Make sure that a transducer protector must be installed on each pressure monitoring line prior to patient use.
  8. All of the disinfectant used for this product have no special contraindications.
  9. To ensure the normal use of the air-capture chamber, its level marking should below 1cm of the upper limit.

8.After sales service

Please keep the original packing for any investigation on product quality.

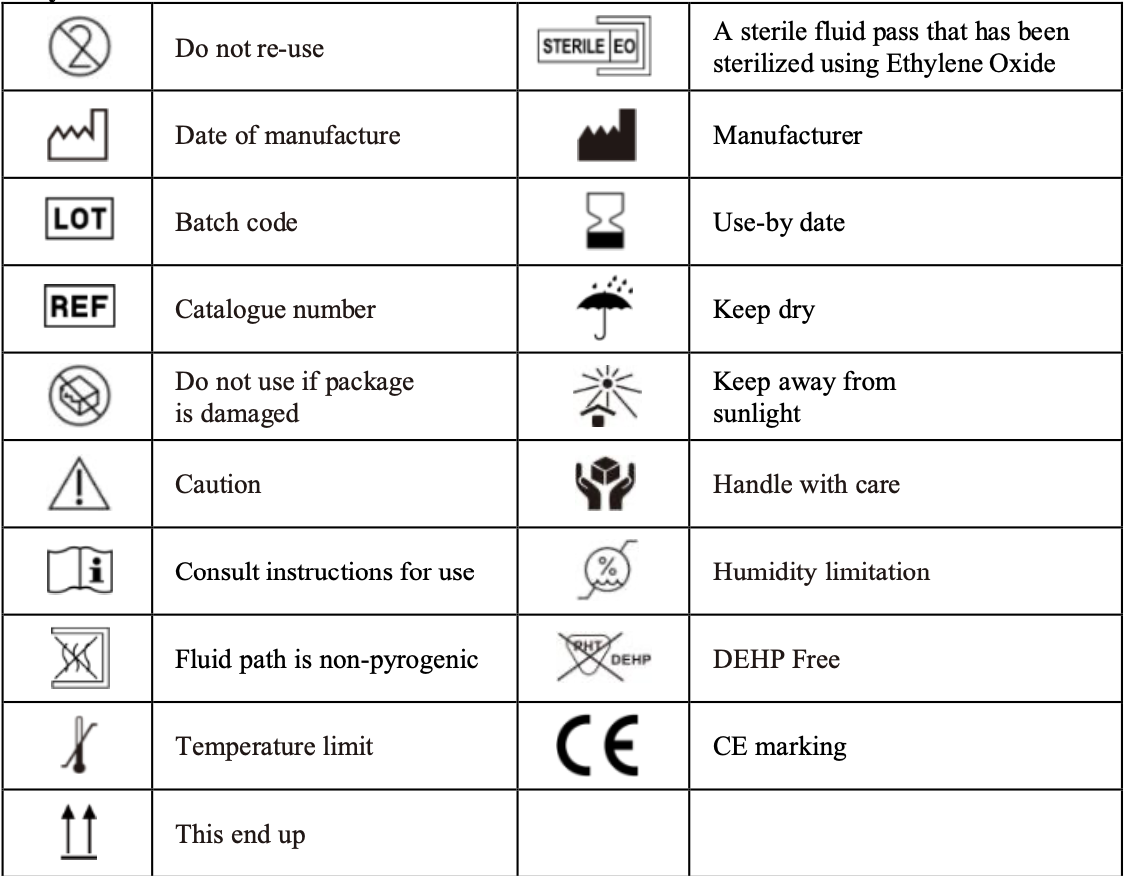

9.Symbol
