Irrigation Pump

Introduction

• This irrigation pump is developed by our company open fully automatic computer control, digital display of the cavity expansion pressure and flushing device.
• Irrigation pump is the use of liquid medium pressure was carried out on the cavity expansion to form the visual space, and can clean blood and cavity was observed and surgical field more clearly. Suitable for all kinds of cavity mirror examination and operation.
• This equipment should be strictly in accordance with different cavity required surgery to withstand the pressure to set.
• Used Oto maintain specified pressure cavity pressure expands, such as hysteroscopic surgery, the pressure setting is not more than 140mmHg(l8.6kpa), flow rate of 0.3 L/min, in order to ensure patient safety.
• Used to in the body cavity filling liquid washing, usually with large set pressure value and traffic.

Consisting of: The host and silicone tube and other parts.

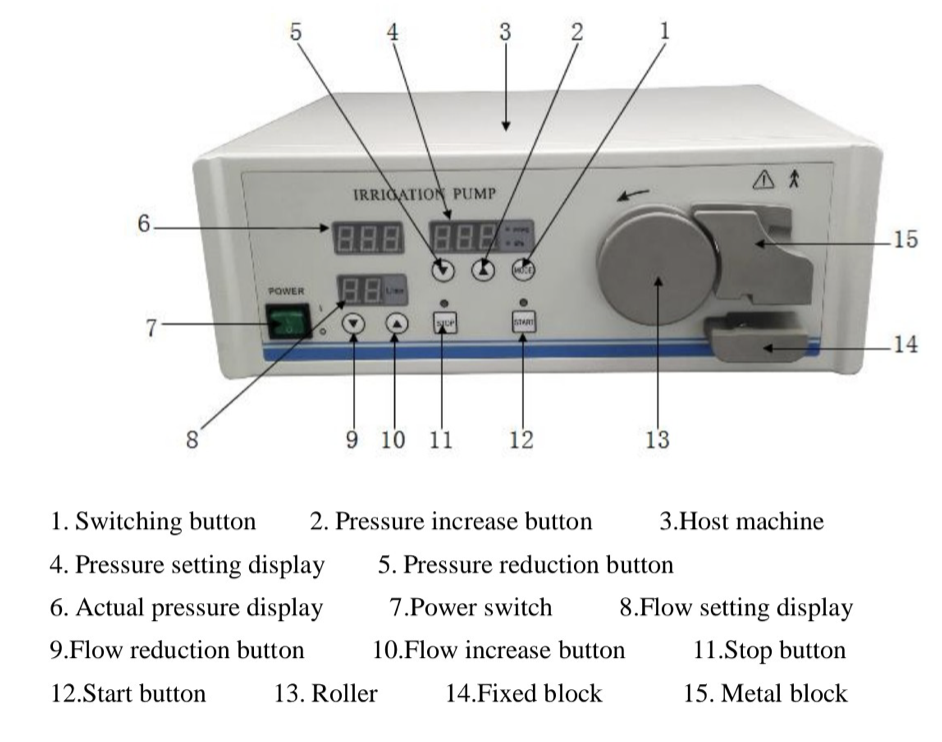

Host schematic:

Technical Parameters

Method of Application

1. Need to know before use

Users in the use of this equipment, the height of the infusion pump host put the position is not the same, will lead to cavity pressure show the actual value and the cavity pressure value is different, details are as follows:

A. perfusion pressure is sensing infusion pump cavity pressure output level (hereinafter referred to as the liquid level) and perfusion chamber in the actual pressure in the cavity of the same horizontal plane.

B. when the liquid level relatively higher or lower horizontal cavity, the cavity within the actual pressure rise and fall, with its lifting value shall be equal to the cavity pressure respectively display value plus or minus the liquid level and pressure generated by height difference between cavity (height of 1 m = 10 kpa).

C. for example, is as follows:

=> Example 1: host a high place, if the liquid level above the coelomic cavity 0.5 meters, to make the body cavity actual pressure for 10 KPa, is set to 10 KPa pressure – 5 KPa = 5 KPa (0.5 meters elevation difference, the differential pressure of 5 KPa).The pressure is displayed when filling pump run to cavity is 5 kpa, actual pressure in the cavity 5 kpa + 5 kpa = 10 kpa.

=> Example 2: the host placed in the liquid level and body cavity in the same horizontal plane, elevation difference of 0), to make the body cavity actual pressure for 10 kpa, is set to 10 kpa pressure, when filling pump run to show inside cavity pressure for 10 kpa, actual pressure in the cavity for 10 kpa.
Example 3: host placed low, if the liquid level lower than the body cavity of 0.5 meters, in the actual pressure in the cavity to 10 KPa, is set to 10 KPa pressure+ 5 KPa = 15 KPa.When filling pump run to show inside cavity pressure is 15 KPa, actual pressure in the cavity of 15 KPa – 5 KPa = 10 KPa.
Man “> (hereinafter referred to as the liquid level) and perfusion chamber in the actual pressure in the cavity of the same horizontal plane.

D. when the liquid level relatively higher or lower horizontal cavity, the cavity within the actual pressure rise and fall, with its lifting value shall be equal to the cavity pressure respectively display value plus or minus the liquid level and pressure generated by height difference between cavity (height of 1 m = 10 kpa).

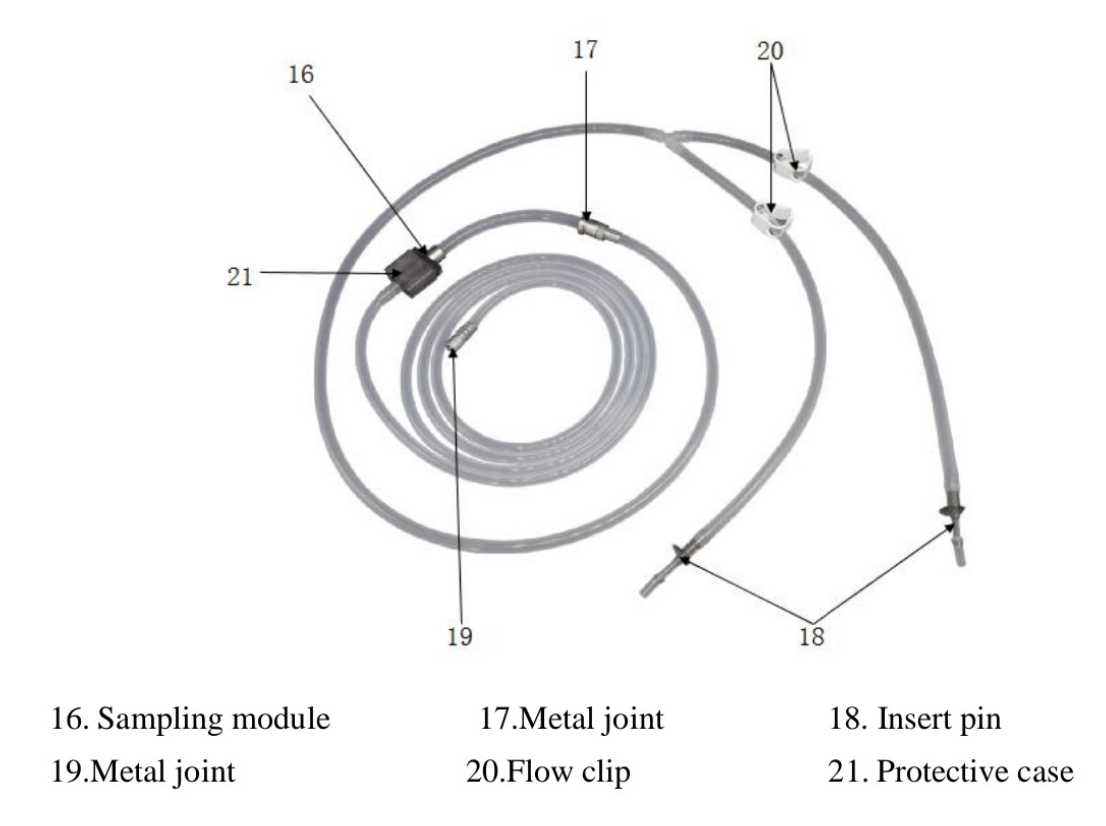

2. Irrigation tube

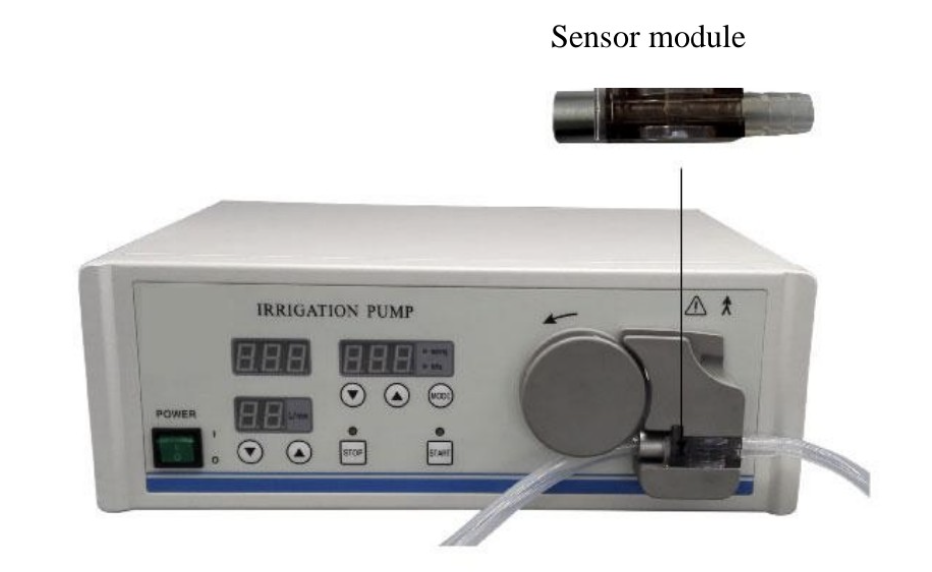

3. Installation stepsClamp the sensor module between fixed block and the metal block, and push it flat.

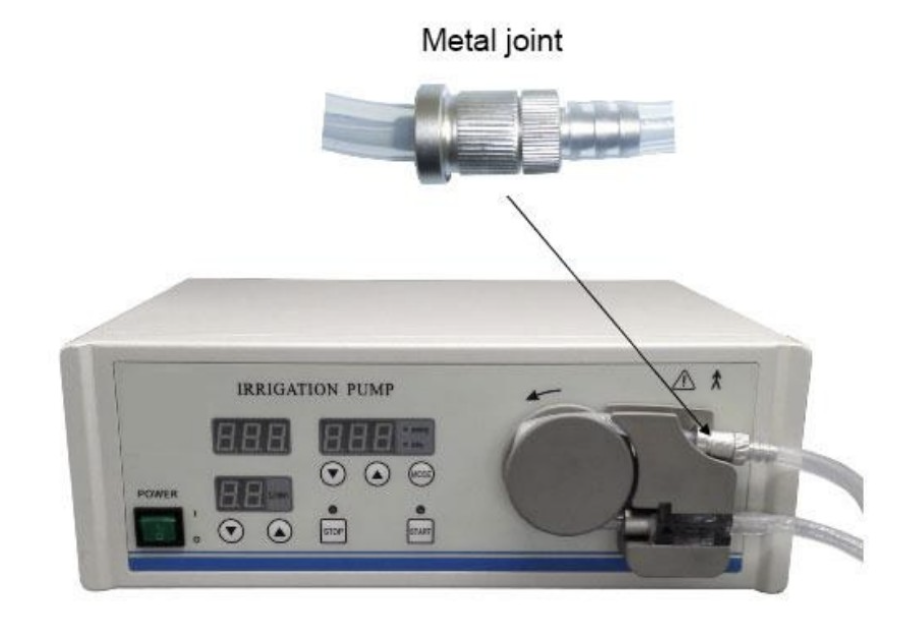

Wrap the silicone tube around the groove of the roller, tight the tube and clamp the metal joint into the groove.

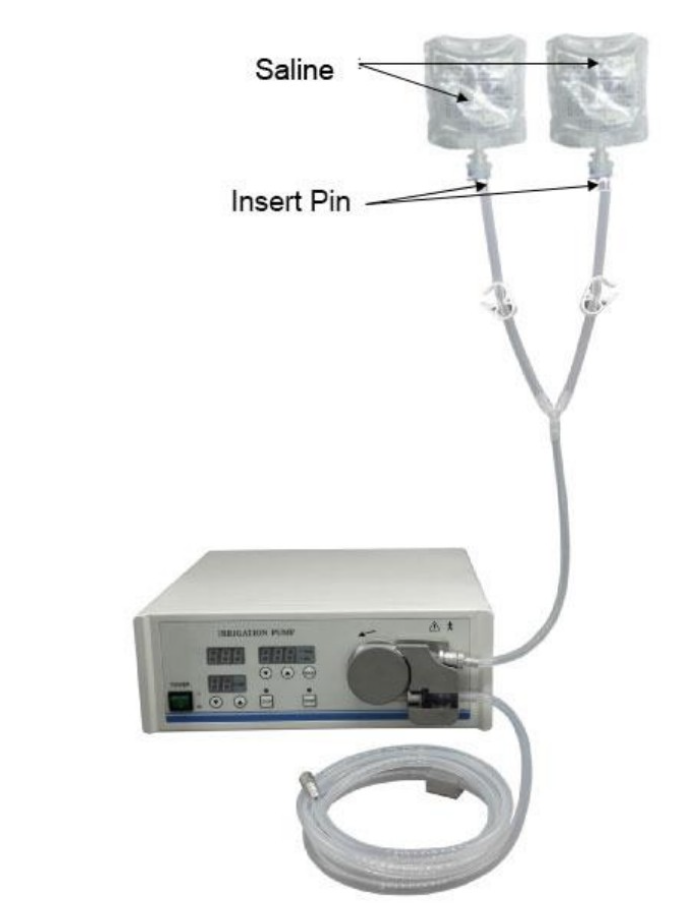

Insert the needle into the saline bag (or another container)

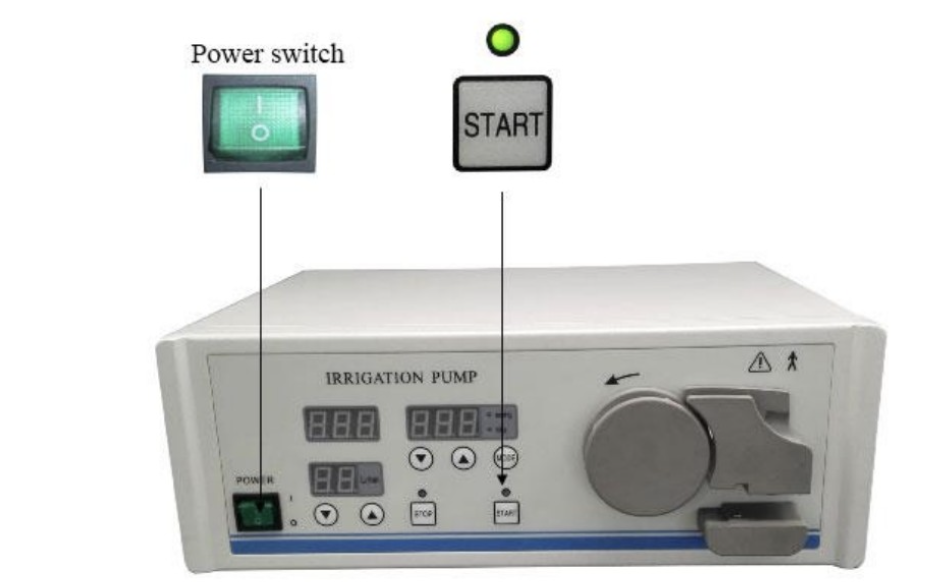

Turn on the power switch, set the pressure and flow rate, connect the connector, and then press the start button (the green indicator light is on).

Note

• Irrigation pump host not disinfected. Sensing apparatus infusion epoxy ethane gases can be used for low temperature fumigation sterilization or high temperature and high pressure disinfection. Note: sensing infusion before use must carry out sterilization, and disinfection, cases with blocks of infusion sensing stuck infusion sensor block, prevent the blowing, flush with the silicon mold damage.
• Equipment used in the operation, set the pressure and flow rate are also different. If used for cavity pressure expansion to maintain specified pressure, should choose a smaller pressure. If hysteroscopy of palace, set pressure should be less than 100 MMHG, flow rate of 0.3 L/min. If used for cavity flushing, can choose bigger set pressure and flow rate.
• parts connection before use, please pay attention to the liquid level in the host and the relative position of elevation difference between patients body cavity, and according to different conditions in the “instructions” before using the pressure setting and cavity the actual conversion.
• Instrument after the power is connected, prohibit open instrument shell, prevent to get an electric shock. Do not use this device in the flammable gas environment.
• Irrigation pump into running state sensing infusion of feed line to make sure nothing is left in liquid medium, pressure pipe nozzle should be placed on the bottom of the container.
• Should 1 cavity mirror into the cavity devices for infusion pump running for a period of time, make the cavity mirror, sensing infusion and the bubbles out of line, to ensure that in line with no air bubbles.
• Midway be expansion of medium, such as surgery should be let into medium along the container wall,, or press the stop button to stop infusion pump into the state. To ensure that the pipeline in the mixed air bubbles.
• Ban placed on the instrument box solution in vessels. Avoid any liquid into the device.
• Instruments don’t work or power failure occurs, immediately shut off the power and pull out the plug.
• Should be regularly check equipment and accessories of integrity.

Maintenance

By the familiar with the instrument performance is for use, maintenance and maintenance. If in use process fails, immediately shut off the power to check whether the fuse is in good condition, if the fuse is damaged, then replace the fuse. If not, should be timely sent to the manufacturer to repair.

Warranty

• Freshness date is one year from the day of selling product , but do not include the transport costs and risk costs .
• If dismantled , repair ,or any other tamper without permission , with regard to the reliability and security of operating appliance , manufacturer refuse to bear the blame.
• In Freshness date , above-mentioned behavior will lead to invalidate quality assurance .
• When appliance reach its Freshness date , should handle appliance in terms of corresponding rules.
